Electrical rubber mat manufacturer
Thickness / MM | Gravity G/cm3 | Class | AC Voltage (KV) | Proof Voltage ( KV ) | Withstand Voltage ( V ) |
3 | 1.5 | 0 | 1KV | 5KV | 10KV |
4 | 1.5 | 0 | 1KV | 5KV | 10KV |
5 | 1.5 | 0 | 1KV | 5KV | 10KV |
6 | 1.5 | 0 | 1KV | 5KV | 10KV |
3 | 1.5 | 1 | 7.5KV | 10KV | 20KV |
4 | 1.5 | 1 | 7.5KV | 10KV | 20KV |
5 | 1.5 | 1 | 7.5KV | 10KV | 20KV |
6 | 1.5 | 1 | 7.5KV | 10KV | 20KV |
7 | 1.5 | 2 | 17KV | 20KV | 30KV |
8 | 1.5 | 2 | 17KV | 20KV | 30KV |
9 | 1.5 | 3 | 26.5KV | 30KV | 40KV |
10 | 1.5 | 3 | 26.5KV | 30KV | 40KV |
11 | 1.5 | 3 | 26.5KV | 30KV | 40KV |
12 | 1.5 | 4 | 36KV | 40KV | 50KV |
13 | 1.5 | 4 | 36KV | 40KV | 50KV |
14 | 1.5 | 4 | 36KV | 40KV | 50KV |
Electrical rubber mat manufacturer - electrical rubber mat feature

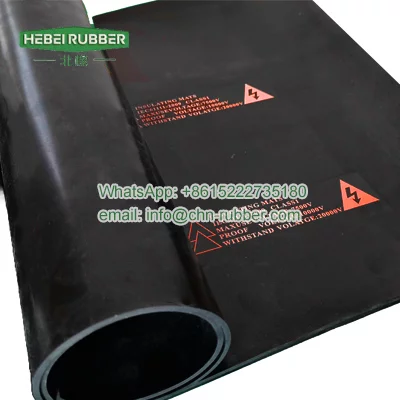

The high voltage insulating rubber mat, or insulating rubber sheet, is made from non-polar insulating rubber materials like CR. Its primary purpose is to safeguard personnel from electric shocks.
Their use in substations, power plants, and other live workplaces is the best proof of their quality. We provide products that meet the requirements of electrical safety and protection.

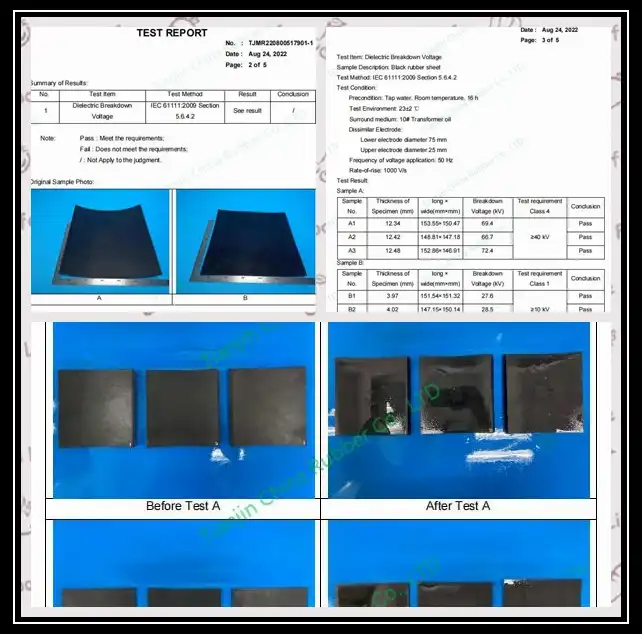

Our electrical rubber mats have passed the IEC 61111 test with a thickness of more than 5mm. There are also 1KV, 5KV, 10KV, 15KV, etc. These insulating electrical mats not only have a flat surface, but also have grooves on the surface for better anti-skid performance while insulating.
The surface of the mat is smooth and free of any impurities. The insulating mat can effectively eliminate the risk of electric shock to workers when current leaks.
If you need electrical rubber mat manufacturer
Every year, our company sells electrical rubber mats in large quantities to customers for use in various workplaces, including ribbed surfaces. We can cut and customise rubber sheets of different grades to meet customers’ needs.
If you have any further questions, please do not hesitate to contact us for assistance.>>
