IEC 61111 Black 5mm 1.5g/cm³ electrical rubber mat suppliers

Whatsapp & P.H: 0086 15222735180
Email: export@chn-rubber.com

1. Material: 100% recycled rubber + Insulating Powder

2. Thickness:1mm-100mm

3. Width: 3m max

4. Length: 10m/roll 20m/roll or as your request

5. Gravity: 1.5g/cm3

6. Hardness:60±5

7. Tensile strength: 3.5-3.8Mpa

8. Elongation: 230%

9. Certificate: IEC 61111-2009



Production conforms to IEC 61111-2009 class 4 electrical rubber mat suppliers

electrical rubber mat suppliers
electrical rubber mat suppliers

Flat smooth insulated electrical mat

The high voltage insulating rubber mat, also called the insulating rubber sheet, is made from non-polar insulating rubber materials like NR, SBR, Cr, NBR, etc. Its main purpose is to protect personnel from electric shocks. Their use in substations, power plants, and other live workplaces is the best proof of their quality. We provide products that meet the requirements of electrical safety and protection.

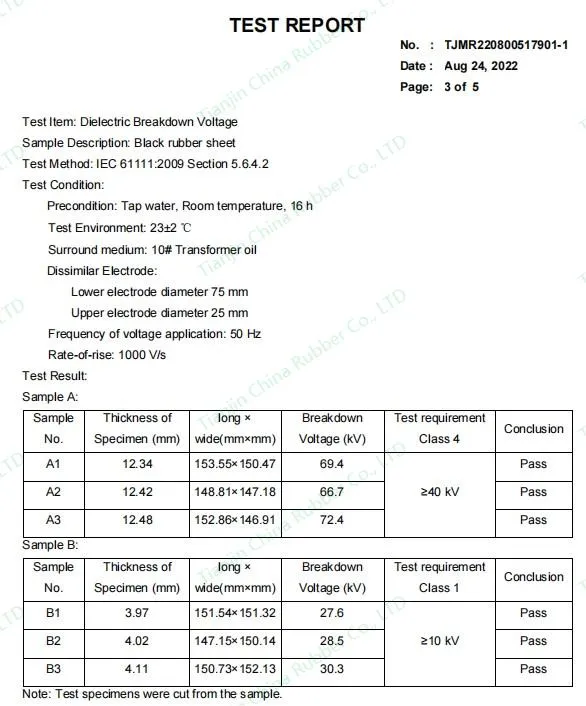

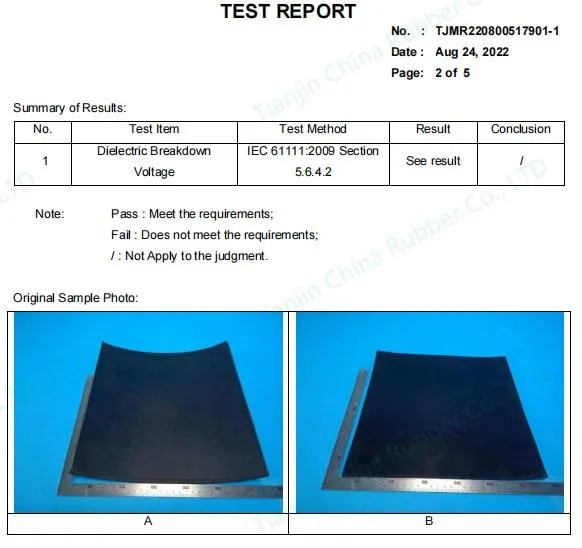

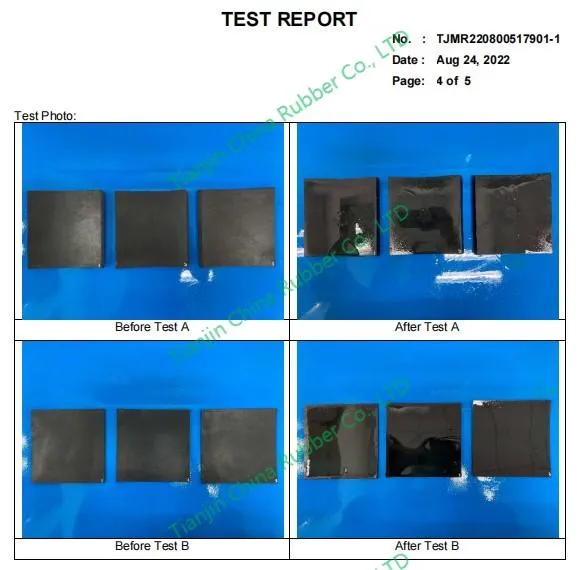

Our high-quality electrical rubber mats have passed the IEC 61111 test, and more than 5mm. There are other 1KV, 5KV, 10KV, 15KV and so on. These insulating electrical mats have not only planes, but also customized rubber sheets with ribs on the surface, which are more anti-skid while insulating.

The surface of this mat is smooth and free of any impurities. The insulating mat can safely eliminate the electric shock injury to working workers when current leaks.

As electrical rubber mat suppliers, customers buy this mat in large quantities every year for use in workplaces, including rib surfaces. We can cut and customize rubber plates of different grades according to customers’ requirements. If you have more questions, please contact us for help.

Color

Black

Thickness

5mm

Hardness

60±5° Shore A

Elongation

230%

Gravity

1.5g/cm³
