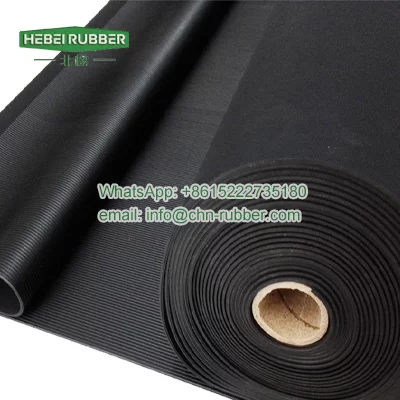

IEC 61111 Electrical insulating matting 3mm antislip mats

Whatsapp & P.H: 008615222735180
Email: export@chn-rubber.com
1. Material: 100% recycled rubber + Insulating Powder
2. Thickness:1mm-100mm
3. Width: 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 1.5g/cm3
6. Hardness:70±5
7. Tensile strength: 3.5-3.8Mpa
8. Elongation: 230%

Electrical insulating matting data sheet:

ThicknessWeigthClassProof Voltage
3mm4.5KGS/M²05KV
4mm6KGS/M²05KV
5mm7.5KGS/M²05KV
6mm9KGS/M²05KV
3mm4.5KGS/M²110KV
4mm6KGS/M²110KV
5mm7.5KGS/M²110KV
6mm9KGS/M²110KV
7mm10.5KGS/M²220KV
8mm12KGS/M²220KV

IEC 61111 insulating matting description:

IEC 61111 is a standard that sets the requirements for electrical insulating matting. IEC 61111 matting is essential in preventing electric shock and maintaining electrical safety in various industries. These matting products are specifically designed to provide a protective barrier between individuals and electrical equipment, thereby minimizing the risk of accidents and injuries.

IEC 61111 insulating matting is commonly used in areas where workers come into contact with live electrical components, such as power distribution rooms, transformer stations, switchboards, and control panels. These mats are made from materials that possess high electrical resistance, ensuring they can withstand and dissipate electrical currents. They are also designed to be durable, flexible, and non-conductive, providing an added layer of protection to workers and preventing electric shocks.

The IEC 61111 standard lays down specific requirements for matting, including electrical resistance, thickness, and dimensions. The standard ensures that these mats meet the necessary safety benchmarks, providing users with confidence in their reliability and effectiveness. Compliance with this standard is crucial as it guarantees that the matting performs its intended function, safeguarding workers from electrical hazards and promoting a safe working environment.

In conclusion, IEC 61111 outlines the necessary specifications for insulating matting, ensuring the safety of individuals working in areas with live electrical equipment. These mats play a vital role in preventing electrical accidents and reducing the risk of electric shock. By adhering to the standard, manufacturers and users can have peace of mind that the electrical insulating matting meets the required safety standards.
