Thickness /MM | Width/M | Gravity G/cm³ | Weight KGS /m³ | Reiforencement |
1 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.1 | 2.1 | / |
1.5 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.1 | 3.15 | / |
2 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.1 | 4.2 | 1PLY |
3 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.1 | 3.6 | 1PLY |
4 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.1 | 8.4 | 1PLY |
5 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.1 | 10.5 | 2PLY |
6 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.1 | 12.6 | 3PLY |
8 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.1 | 16.8 | 4PLY |
10 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.1 | 21 | 5PLY |
12 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.1 | 25.2 | 8PLY |
15 | 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m | 2.1 | 31.5 | 10PLY |
Technology Date Sheet
What is viton (FKM)rubber?

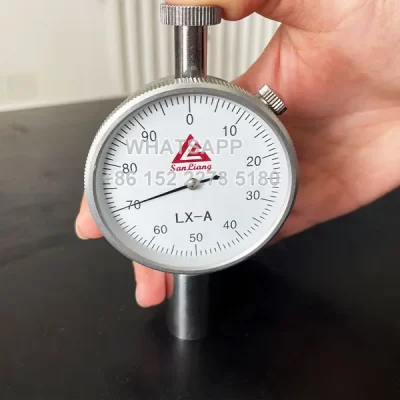

This is a kind of viton rubber sheet with a hardness of 70 ± 5 °. Usually, the color most used in industry or commerce is black. Viton rubber is a high-quality and excellent rubber material. “Viton” is a general term for all FKM rubber, which is also abbreviated as “FKM” rubber sheet. It is made of fluorine containing polymers and other rubber compounds, which can meet the high demand for special elastomers and is suitable for use in challenging extreme environmental conditions
From China viton rubber sheet, it is a real high-quality material. These rubbers can work perfectly at – 30 ℃ to 250 ℃, and maintain good physical and mechanical properties.
Where is viton rubber generally used?
Secondly, Viton rubber sheet also has excellent resistance to acid and alkali substances (such as inorganic acids and aliphatic and aromatic hydrocarbons), chemicals and other irritants (such as diesel, vegetable oil, liquefied petroleum gas, gasoline, animal oil, sealing oil, lubricants, etc.), which is better than NBR, CR, EPDM. Therefore, it can also resist long-term exposure to ozone, sunlight, and ultraviolet light. These external factors have little influence on it, suitable for use in seals
China viton rubber sheet is applicable to: aerospace industry projects, because they are demanding; Chemical processing, pharmacy, power generation, pipeline connection that needs to contact chemical substances, and tank lining of chemical substances, oils or other types of highly corrosive media can easily resist these problems.
As a professional manufacturer of China viton rubber sheet, we can produce 1-100mm thick, 2.1g/cm ³ (This proportion is unique). It can easily cut rubber sheets of any shape and size, and customize various fluororubber gaskets and blocks. However, we only accept customized gaskets, blocks and seals in large quantities. If you have more questions about viton sheet, or if you have a request for quotation, please contact us to answer them.
