Brown 2.0g/cm³ FKM high quality rubber sheet

Whatsapp & P.H: 008618622863849
Email: export@chn-rubber.com

1. Material: Viton rubber material
2. Thickness:3mm
3. Width: 3m max
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 2.0g/cm3

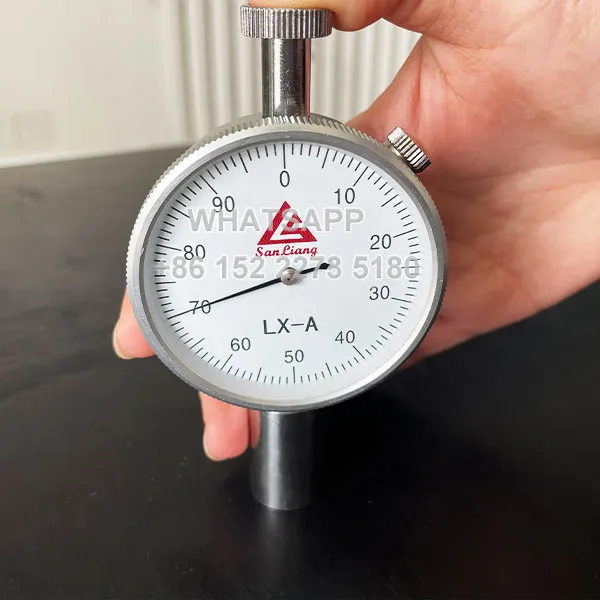

6. Hardness:70±5
7. Tensile strength: 6-8Mpa
8. Elongation: 360%
9. Heat temperature resistant ( long time: 230℃)
10. Heat temperature resistant (short time: 250℃)
11. Instantaneous temperature (270℃)
12. Low Temperature Resistant :- 30 ℃

Category:
high quality rubber sheet

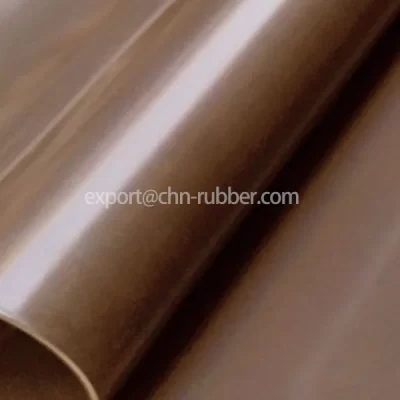

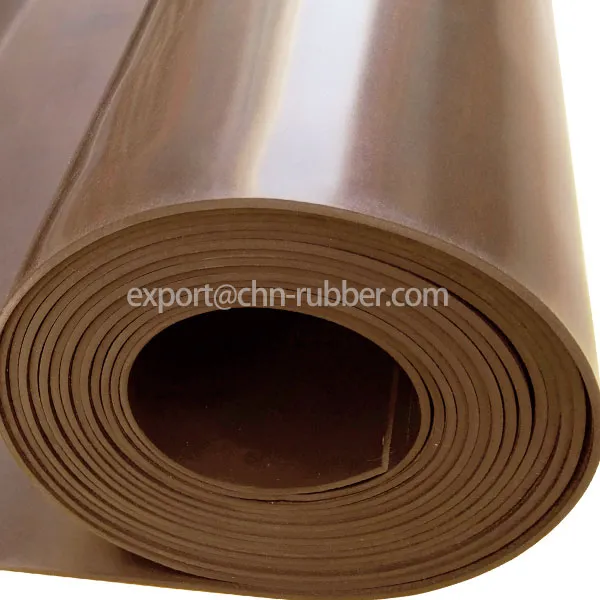

High quality rubber sheet - FKM rubber material

The high quality rubber sheet produced by Hebei No.6 Rubber Co., Ltd. is fluororubber with a hardness of 70±5°Shore A. The viton rubber  has excellent physical and mechanical properties.

The vulcanized FKM sheet has a surface ratio of ordinary rubber sheets are smoother, like rubber mirrors, without any air bubbles, and can be used continuously at a high temperature of 250 °C, even at an instantaneous temperature of 270 °C, and the lowest temperature can be continuously operated at – 30 °C. Will maintain good performance.


High quality rubber sheet-viton rubber sheet is made of virgin fluororubber material after vulcanization. The rubber sheet is elastic, with 360% excellent elongation, and has the typical chemical resistance and corrosion resistance of FKM rubber sheet roll.

Not only chemicals, but also excellent resistance in the work of inorganic acids, aliphatic and aromatic hydrocarbon liquids – especially acids and alkalis, in petroleum engineering, fluoroelastomers are also excellent, Shows the best resistance to oil, gasoline, LPG and diesel, especially in general grease environment.

As a high quality rubber sheet, FKM rubber has excellent resistance to sunlight, ultraviolet rays, ozone, and harsh weather conditions. It can be used outdoors, and it will not affect the use when exposed to outdoor ultraviolet rays and ozone.

The performance is not inferior, weathered, The effect of aging on fluorine rubber is almost negligible, and it is suitable for sealing and corrosion protection at critical temperatures.

Summary of the characteristics of fluorine rubber sheet:

  • FKM rubber sheet roll can work in corrosive liquids and have excellent sealing properties
  • Relatively large temperature range, high temperature resistance, low temperature resistance, wide working range
  • FKM sheet has better resistance and performance than synthetic rubber sheets such as SBR/NBR/CR/EPDM
  • Oil resistant, acid and alkali resistant, can also be used in oil work
  • Excellent weather resistance, UV resistance, and ozone resistance are far better than EPDM, and weathering is not a problem
  • Very impermeable, suitable for sealing work

Application

Viton sheet can be used as gaskets, gaskets, seals and other rubber parts in industry, and can also be used in heavy industry, under very harsh conditions.

We are the most outstanding high-quality rubber sheet manufacturer and supplier, with rich experience and customer service experience, can provide customers with the best quotation, if you are looking for a reliable rubber sheet supplier, you can contact us for more Information>>

Color

Brown

Elongation

360%

Gravity

2.0g/cm³

Hardness

70±5 Shore A

Thickness

3mm
