IEC 61111 Fine rib electrical insulation mat for 11kv

Whatsapp & P.H: +8615222735180
Email: export@chn-rubber.com
1. Material: 100% recycled rubber
2. Thickness:1mm-100mm
3. Width: 1m/1.2m/1.4m/1.5m/1.6m/1.8m/2.0m
4. Length: 10m/roll 20m/roll or as your request
5. Gravity: 1.5g/cm3
6. Hardness:60±5
7. Tensile strength: 3Mpa
8. Elongation: 200%

Electrical insulation mat for 11kv data sheet:

ThicknessLengthWeightWithstand Voltage ( KV )
3mm10m/roll 20m/roll or as your request4.5KGS/M²10KV
4mm10m/roll 20m/roll or as your request6KGS/M²10KV
5mm10m/roll 20m/roll or as your request7.5KGS/M²10KV
6mm10m/roll 20m/roll or as your request9KGS/M²10KV
3mm10m/roll 20m/roll or as your request4.5KGS/M²20KV
4mm10m/roll 20m/roll or as your request6KGS/M²20KV
5mm10m/roll 20m/roll or as your request7.5KGS/M²20KV
6mm10m/roll 20m/roll or as your request9KGS/M²20KV
7mm10m/roll 20m/roll or as your request10.5KGS/M²30KV
8mm10m/roll 20m/roll or as your request12KGS/M²30KV
9mm10m/roll 20m/roll or as your request13.5KGS/M²40KV
10mm10m/roll 20m/roll or as your request15KGS/M²40KV
11mm10m/roll 20m/roll or as your request16.5KGS/M²40KV
12mm10m/roll 20m/roll or as your request18KGS/M²50KV
13mm10m/roll 20m/roll or as your request19.5KGS/M²50KV
14mm10m/roll 20m/roll or as your request19.5KGS/M²50KV

Electrical rubber mat 11kv description:

Electrical insulation mat for 11kv is a crucial component in ensuring the safety of electrical workers and preventing electrical accidents. These mats serve as a protective barrier between workers and the potentially dangerous electrical equipment they are working with. The 11kv rating indicates that these mats are specifically designed to withstand high voltage levels, providing reliable insulation and protection.

By placing these mats on the ground in areas where electrical maintenance or repair work is being carried out, workers can reduce the risk of electric shock or injury. These mats are made from durable and electrically non-conductive materials, such as rubber, to effectively prevent the flow of electricity.

Additionally, they may include features like anti-skid surfaces to provide further safety. The correct usage of electrical insulation mats for 11kv is of utmost importance to ensure a safe working environment for electrical workers, minimizing the chances of accidents and injuries.

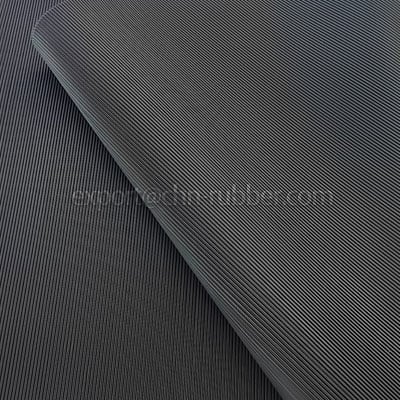

electrical insulation mat for 11kv

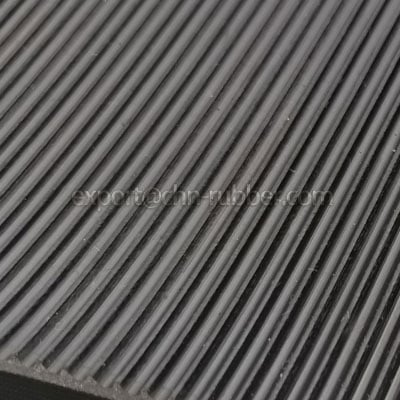

electrical insulation mat for 11kv
